FOV metadata record each field of view’s file paths, acquisition information, calibration settings, and selected extractors. The Data Extraction → Numerical workflow prepares and automatically saves this record.

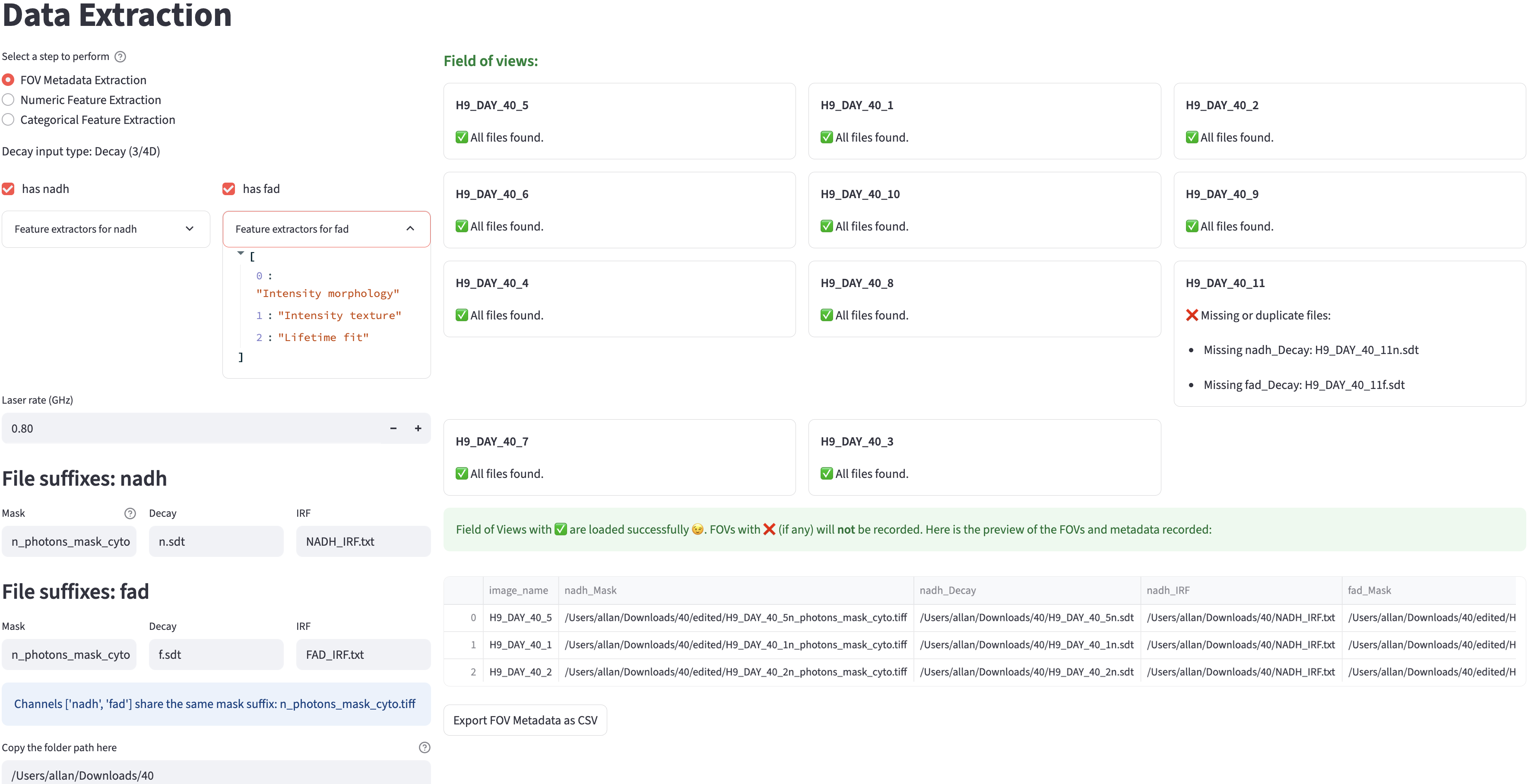

Numerical source preparation with channel and folder settings on the left and field-of-view checks and a metadata preview on the right.

Source settings appear beside the file checks and metadata preview in Numerical.

The left side contains source settings from the active extraction profile; the right side shows file validation, any required channel assignments, and the metadata preview. After preparation, the source settings remain available in the collapsed Metadata settings expander.

5.1 Source settings

Source edits, a rescan, or a profile change invalidate an already prepared workflow, so the app repeats preparation before extraction. If another browser tab changed Configuration, follow the reload notice to use its new settings.

5.1.1 Folder Path

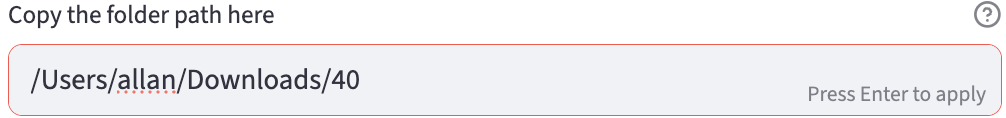

Enter the path to the folder containing the required input files. The scan includes subfolders.

5.2 Metadata Extraction

5.2.1 FOV File Paths

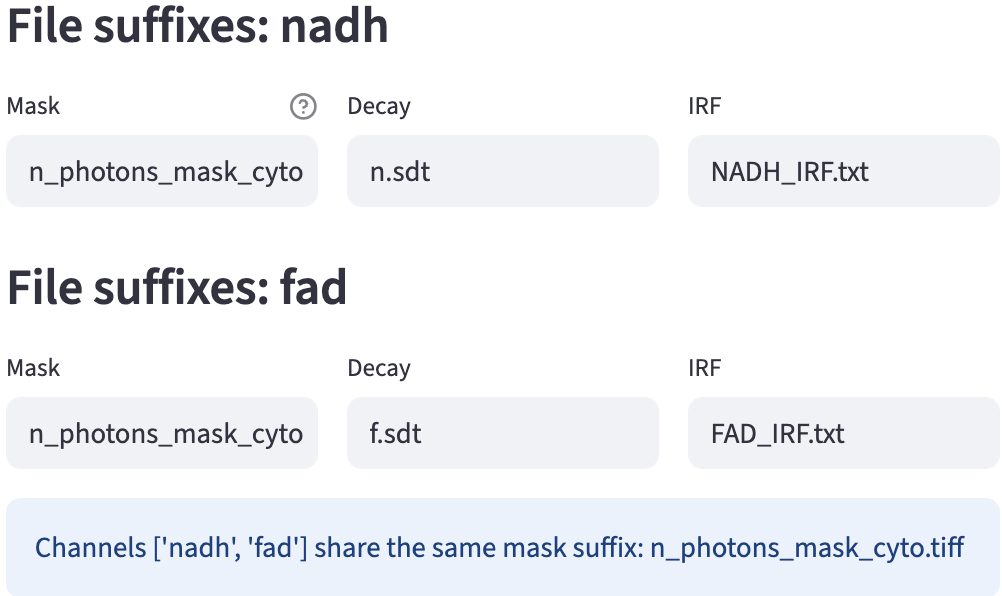

The app finds files matching the first configured per-FOV suffix, excluding calibration suffixes, then derives each FOV name:

  • FOV name = file name - 1st file suffix

It finds the remaining inputs using:

  • File name to search = FOV name + configured file suffix

Calibration files are shared across FOVs and are searched for by suffix alone, independently of the FOV name. For example, the same standard.ptu or irf.ptu will be used for every FOV in the folder. Files matching configured IRF or fluorescence lifetime standard suffixes are excluded from FOV discovery, even when they share the sample’s .ptu extension. This also applies to configured references for an inactive calibration method; those files are excluded if present but are not required.

Each FOV card reports whether the required inputs were found:

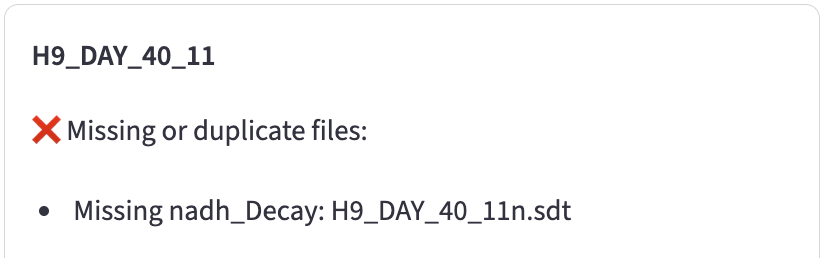

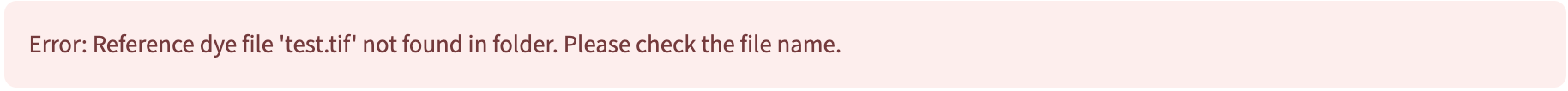

  • Missing: no file matches the expected FOV name plus suffix, or no calibration file matches its suffix.

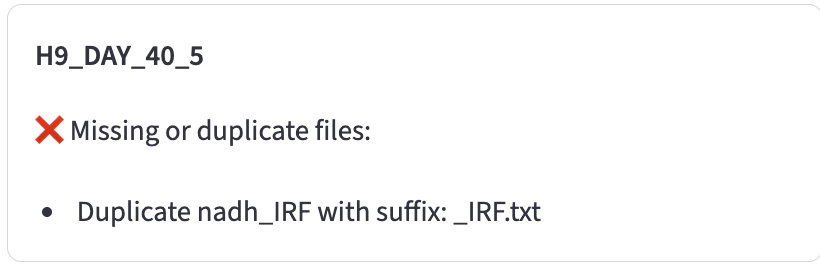

  • Duplicate: multiple files match a calibration suffix, or the same per-FOV filename appears in different subfolders. Keep one unambiguous match for each required input.

FOVs marked ✅ are included in the metadata; FOVs marked ❌ are excluded.

Tip

After correcting missing or duplicate filenames or changing the folder path, click Rescan folder to repeat the scan.

5.2.2 Decay Info

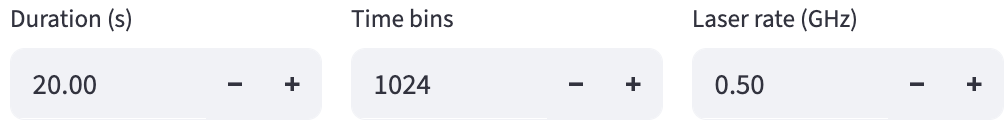

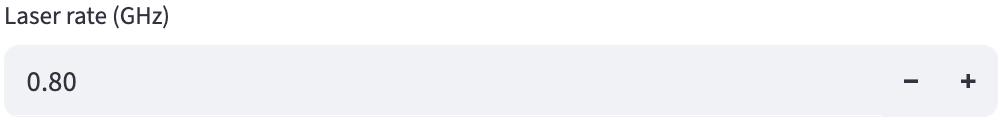

For 3D/4D decay, FLIM Playground tries to infer the duration and number of time bins per laser pulse interval from the file metadata. It also checks for inconsistencies across decay files.

Channel Assignment

For a 4D decay array, FLIM Playground lists the non-empty acquisition channels for each configured channel name. If only one is available, it is assigned automatically; otherwise, select the intended channel.

The app also checks dimensions across FOVs and channels within each imaging modality. FLIM, intensity-only, and QPI modalities can have different spatial grids, provided each image matches its own mask; corresponding cells are joined by label.

Intensity-only and QPI TIFFs can hold several channels too. They are assigned the same way. Channels that are empty in every field of view are not offered, and a field of view whose channels are all empty is rejected. Z-stacks, time series, complex-valued images and files with more than one axis besides the image channels are rejected.

When several channels are available, a preview below the dropdown shows one thumbnail per candidate from the first FOV, with a ✅ on the selected channel. Check that it looks like the fluorophore you expect.

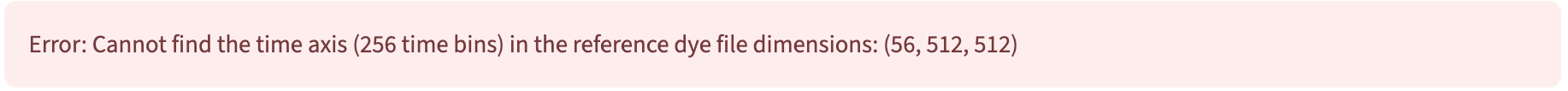

The metadata records the standard’s file path, known lifetime, and time axis. For a PTU standard, the app supplies the time axis automatically from the integrated reference curve.

5.2.3 Result preview and automatic save

When at least one FOV has valid inputs and the applicable acquisition and reference checks pass, inspect the metadata preview. Click Start calibration if any selected channel needs IRF shift or QPI background calibration; otherwise click Start extraction to begin extracting immediately. Both actions automatically save the metadata in the source folder.

Numerical source validation with field-of-view status, a metadata preview, and the next workflow action.

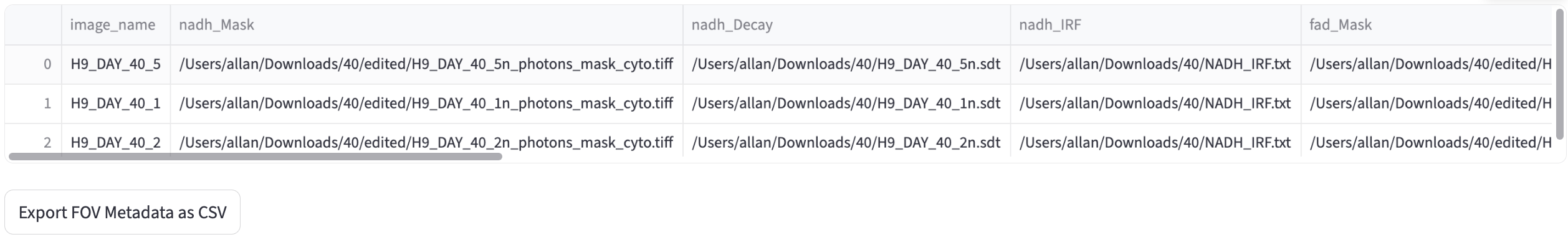

Check the recorded file paths before starting calibration or extraction.

For example, a two-channel FLIM experiment records:

  • image_name: each FOV’s name, when image_name is the configured FOV identifier.
  • nadh_Mask, nadh_Decay, nadh_IRF, fad_Mask, fad_Decay, fad_IRF: the file paths of the mask, decay, and IRF files for the nadh and fad channels.
  • nadh_input_type, nadh_imaging_modality, fad_input_type, fad_imaging_modality: the imaging modality and the corresponding input type for each channel. These are two distinct values. For a channel whose modality is FLIM, the input type is one of the decay types; for a channel whose modality is Intensity-only, the input type is Intensity (2D); for QPI, it is QPI (2D). Channels that share the same imaging modality share the same input type.

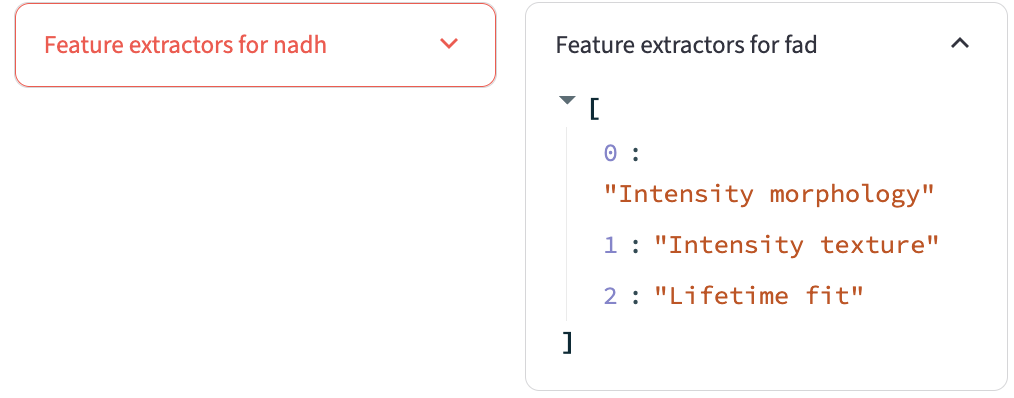

  • nadh_Lifetime fit free, nadh_Intensity morphology, nadh_Lifetime fit, fad_Intensity morphology, fad_Intensity texture, fad_Lifetime fit: feature extractors for each channel.
  • nadh_channel, duration, fad_channel, time_bins, laser_rate: the recorded decay info for each channel and information shared by all channels.

For QPI channels, the record also includes the OPD-image and mask paths, physical constants (pixel_size_um, opd_unit, and alpha_um3_per_pg with the channel prefix), and the confirmed background recipe. Spatial dimensions are recorded separately for each modality.

Preparation writes fov_metadata_<timestamp>.csv into the source folder. Confirming calibration and changing the confirmed fitting mode automatically update the same file. A failed metadata write shows Retry saving metadata and prevents feature extraction until saving succeeds. This CSV records the run for bookkeeping and troubleshooting; new runs begin from the source folder in Numerical.
